Transonic 1.1

Name: Transonic 1.1
Brand: Fuji Bikes
SKU: 19221000152
Price: 6499.99 USD
Availability: InStock

$6,499.99 USD

Size Guide

Size

Color: Matte Carbon/Gold Flake

Matte Carbon/Gold Flake

Product Locator by Locally

Description

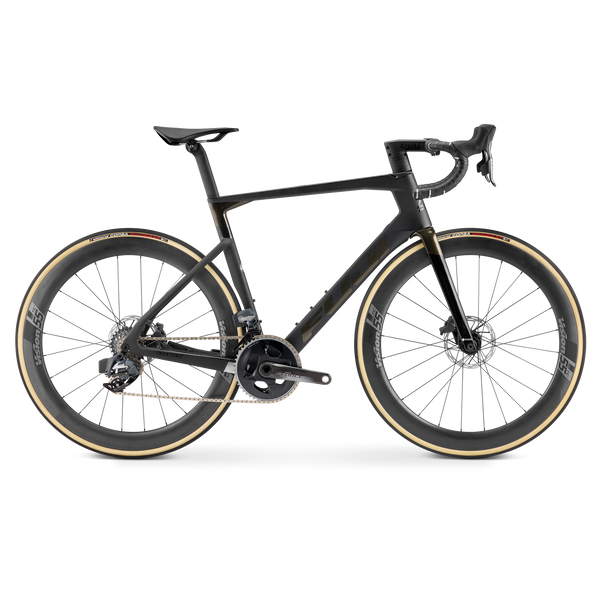

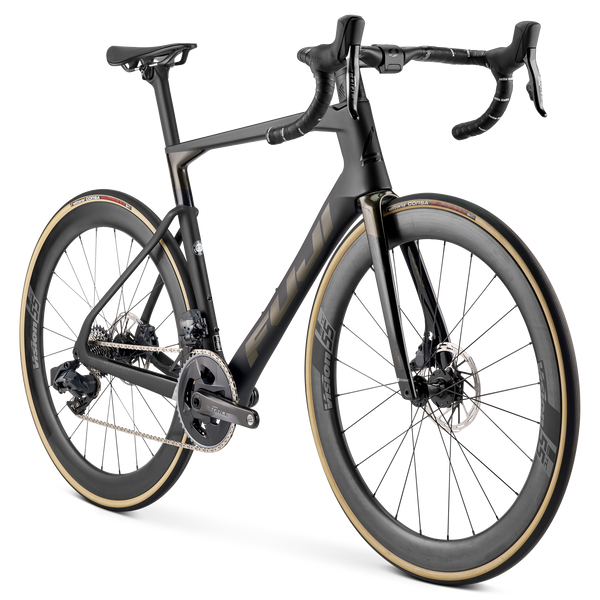

Transonic flight pushes the envelope of the speed of sound. Aboard Fuji’s flagship aero road bike, take flight as revolutionary linear frame design meets engineering and integration. Effortlessly accelerate towards the upper reaches of speed and performance a bike can offer.

Shipping and Returns

SHIPPING

All non-bike items and a limited number of bike models have the option to ship to home. All other bikes ordered online will be delivered to your chosen local authorized Fuji dealer.

SHIP TO HOME RETURNS

Item(s) in new, unassembled, unused condition and with all original packaging, hangtags, and parts will be eligible for a refund when returned within 30 days of purchase. Return shipping fees apply.

*More Details

SHIP TO STORE RETURNS

Bicycles can be returned at time of pick-up only. After leaving the store with your assembled bicycle the sale is final. It’s up to the seller you purchased from to initiate the return. Restocking fee may apply.

*More Details

Learn More

Sizes

XXS (46cm), XS (49cm), S (52cm), M (54cm), L (56cm), XL (58cm), XXL (61cm)

Color(s)

Matte Carbon / Gold Flake

Frame

C15 ultra high-modulus schedule process. High compaction molding. Aero optimized integration. PF30 BB, 142x12 thru-axle.

Fork

C15 ultra high-modulus schedule process. High compaction molding. Aero optimized integration. 100x12mm thru-axle

Crankset

SRAM Force carbon, 48/35T

Bottom Bracket

SRAM DUB PF30

Front Derailleur

SRAM Force eTap AXS

Rear Derailleur

SRAM Force eTap AXS

Shifters

SRAM Force eTap AXS, 2 x 12 speed

Cassette

SRAM XG-1270, 10-28T

Chain

SRAM Force 12spd
Wheelset

Vision Tech TC55, carbon, tubeless ready

Tires

Vittoria Corsa G2.0, 700 x 28c

Brakeset

SRAM Force eTap AXS hydraulic disc, 160mm rotor

Brake Levers

SRAM Force eTap AXS hydraulic disc

Headset

FSA, 1 1/4" upper - 1 1/2" lower, integrated

Handlebar

Oval Concepts 990 Aero carbon, 31.8mm clamp, 125mm drop / 75mm reach

Stem

Oval Concepts 790 Aero, 3D-forged, -17°, integrated computer mount

Tape

Selle Italia SG Tape

Saddle

Selle Italia Model X

Seatpost

Transonic Aero Carbon

Weight

TBD

*Specifications are subject to change without notice

Geometry

	Size	XXS (46cm)	XS (49cm)	S (52cm)	M (54cm)	L (56cm)	XL (58cm)	XXL (61cm)
A	Seat Tube Center To Top	440	457	484	503	520	538	567
B	Seat Tube Effective	460	490	520	540	560	580	610
C	Top Tube Effective	500	515	537	552	565	581	600
D	Head Tube Length	93	109	129	145	166	183	203
E	Seat Tube Angle	74.75°	74.3°	74.2°	74.2°	73.5°	73.5°	73°
G	Headtube Angle	70.6°	71°	72°	72.7°	73°	73°	73°
H	Chainstay Length	410	410	410	410	410	410	410
I	Wheelbase	971.3	982	988	989	999	1016	1030
J	Bottom Bracket Drop	73	70	70	68	68	66	66
K	Fork Offset	52	52	52	43	43	43	43
L	Trail	63	61	54	60	58	58	58
M	Stack	487	500	523	541	562	576.5	596
N	Reach	367	374	382	392	399	410	418
O	Standover	730	747	772	788	806	824	846
	Stem	70	90	90	100	110	120	120
	Handlebar Width	380	400	400	420	420	440	440
	Crank	165	170	170	172.5	172.5	175	175
	Wheel Size	700	700	700	700	700	700	700
	Seat Post Diameter	N/A	N/A	N/A	N/A	N/A	N/A	N/A

Looking for a different bike?

Find Your Fuji

Size	XXS / 46	XS / 49	S / 52	M / 54	L / 56	XL / 58	XXL / 61
Inch	4'11" - 5'2"	5'0" - 5'4"	5'3" - 5'7"	5'6" - 5'10"	5'9" - 6'0"	5'11" - 6'2"	6'1" - 6'5"
CM	150 - 157	152 - 163	160 - 170	168 - 178	175 - 183	180 - 188	185 - 196
