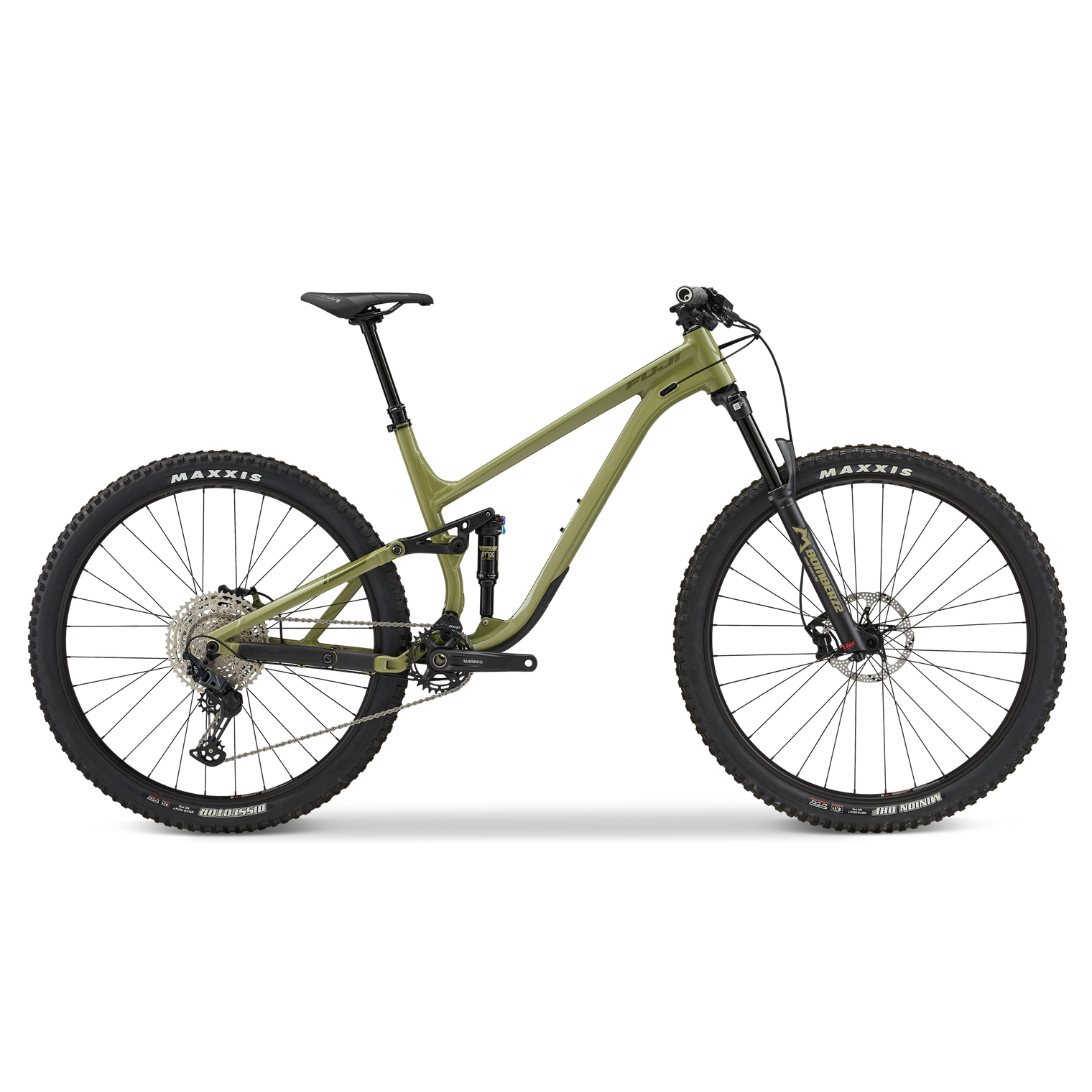

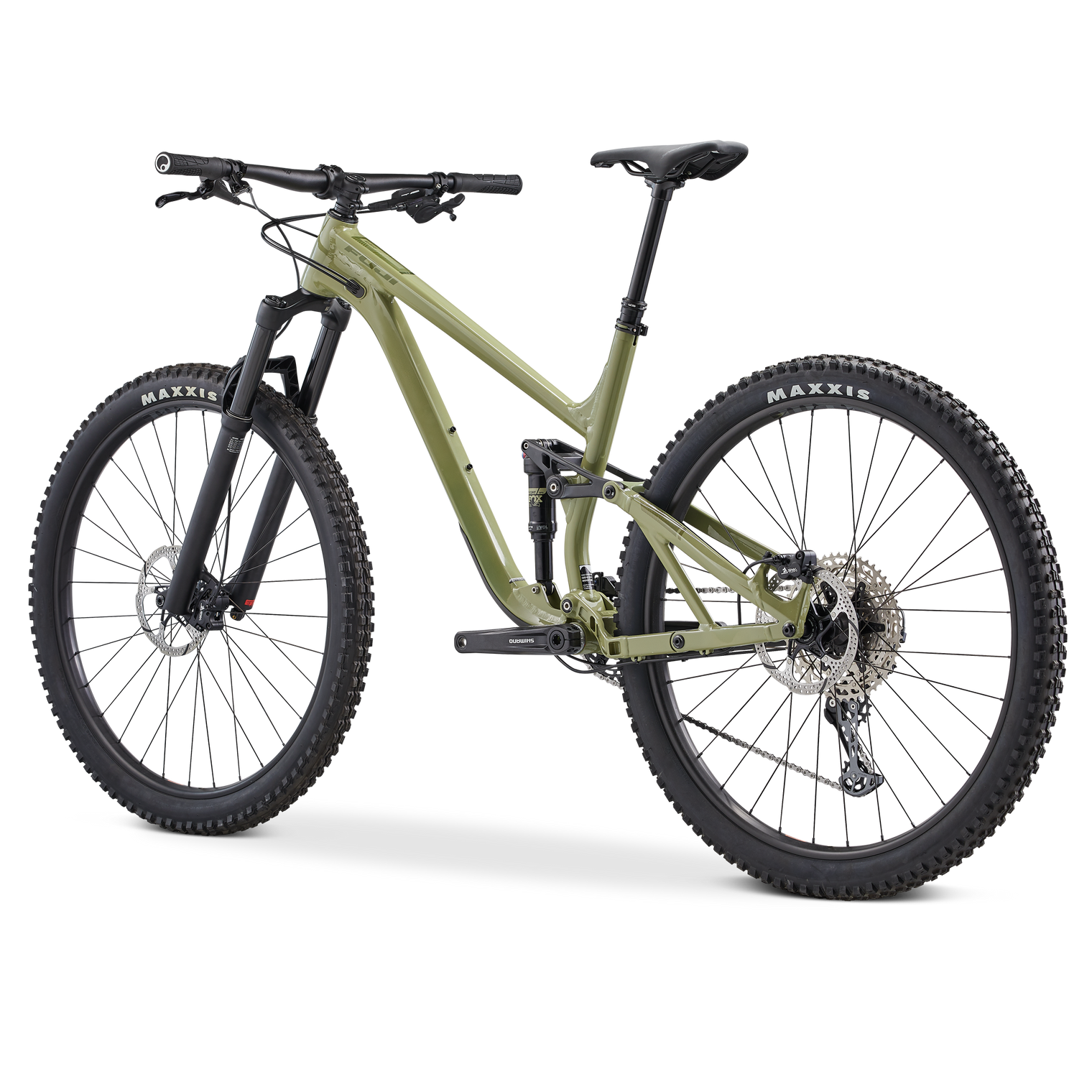

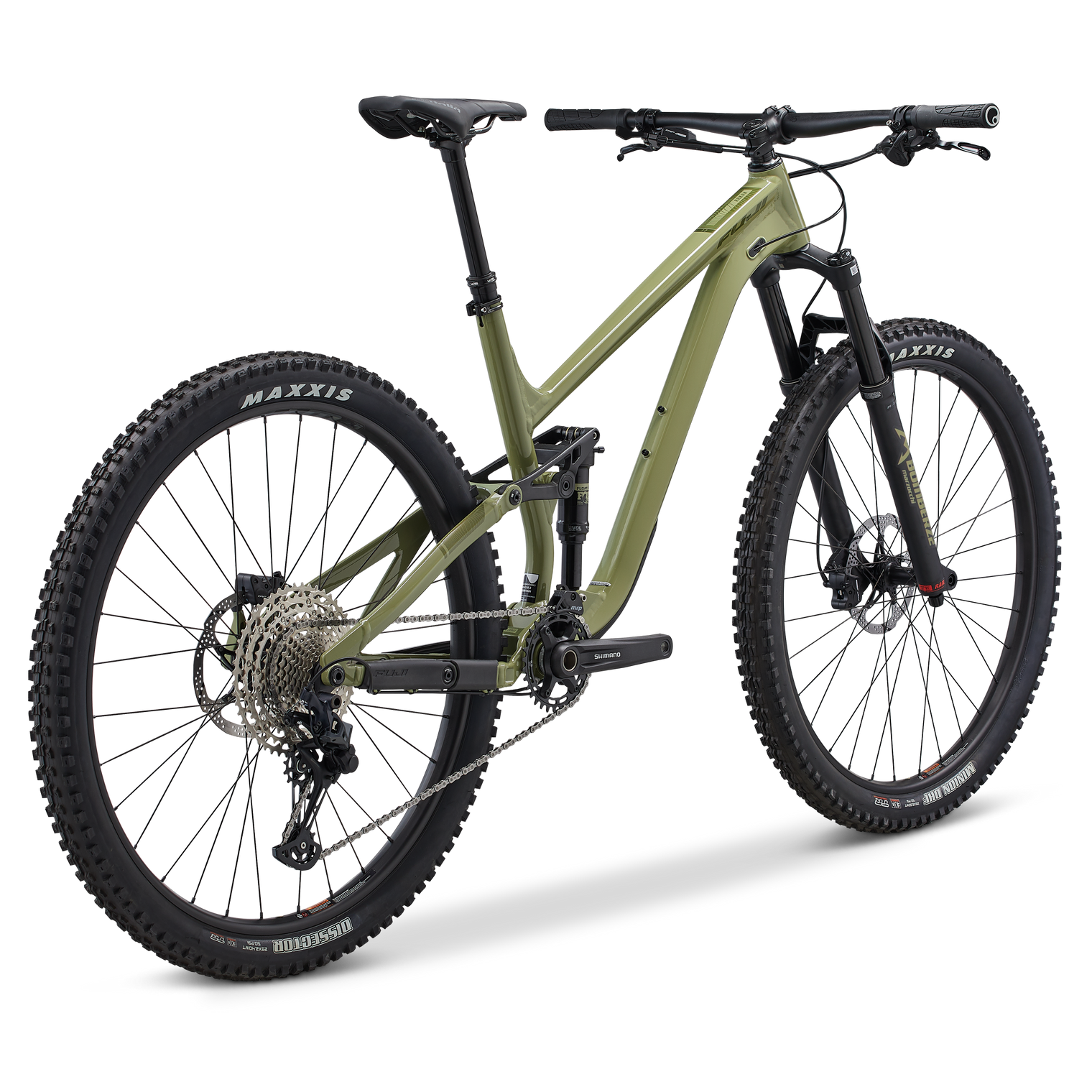

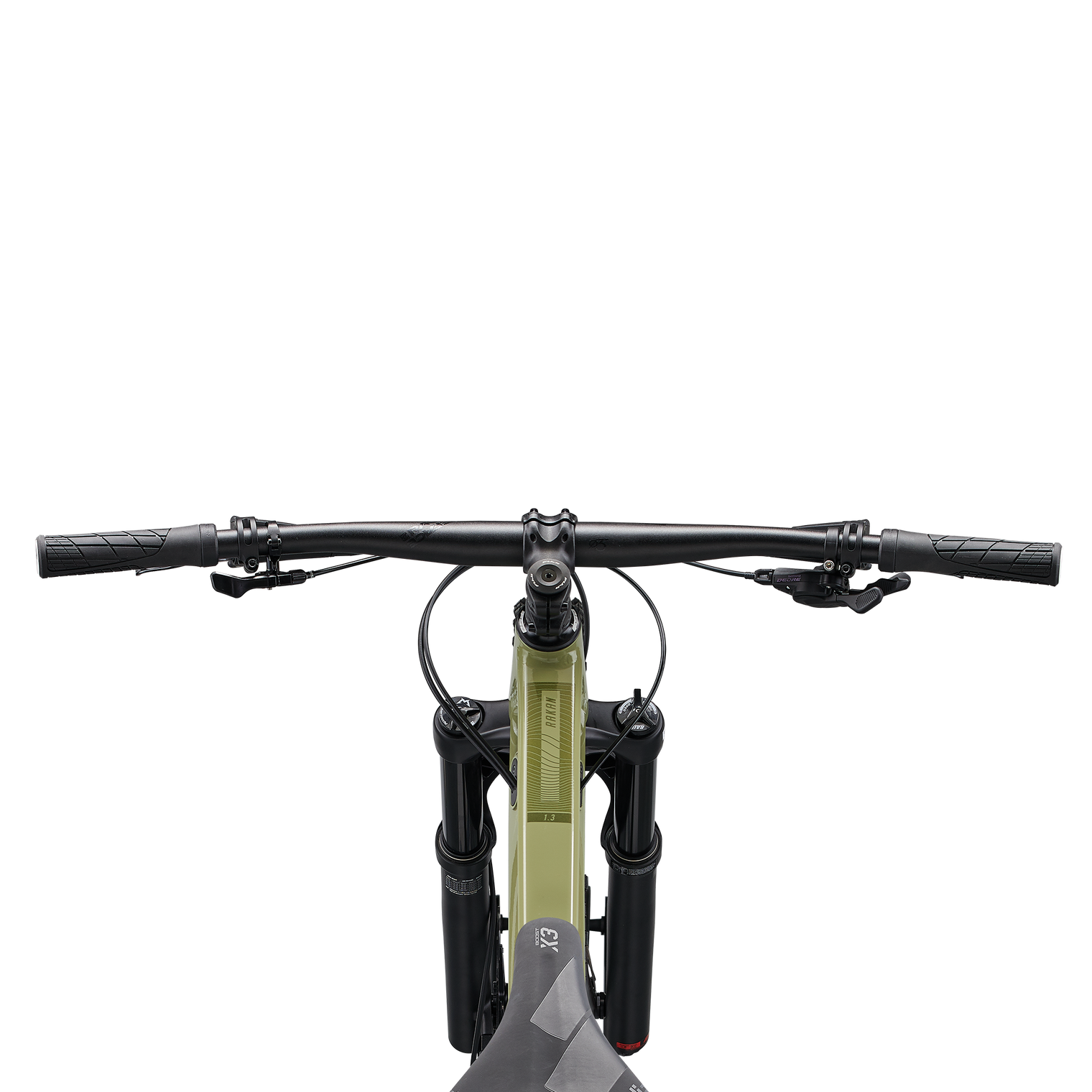

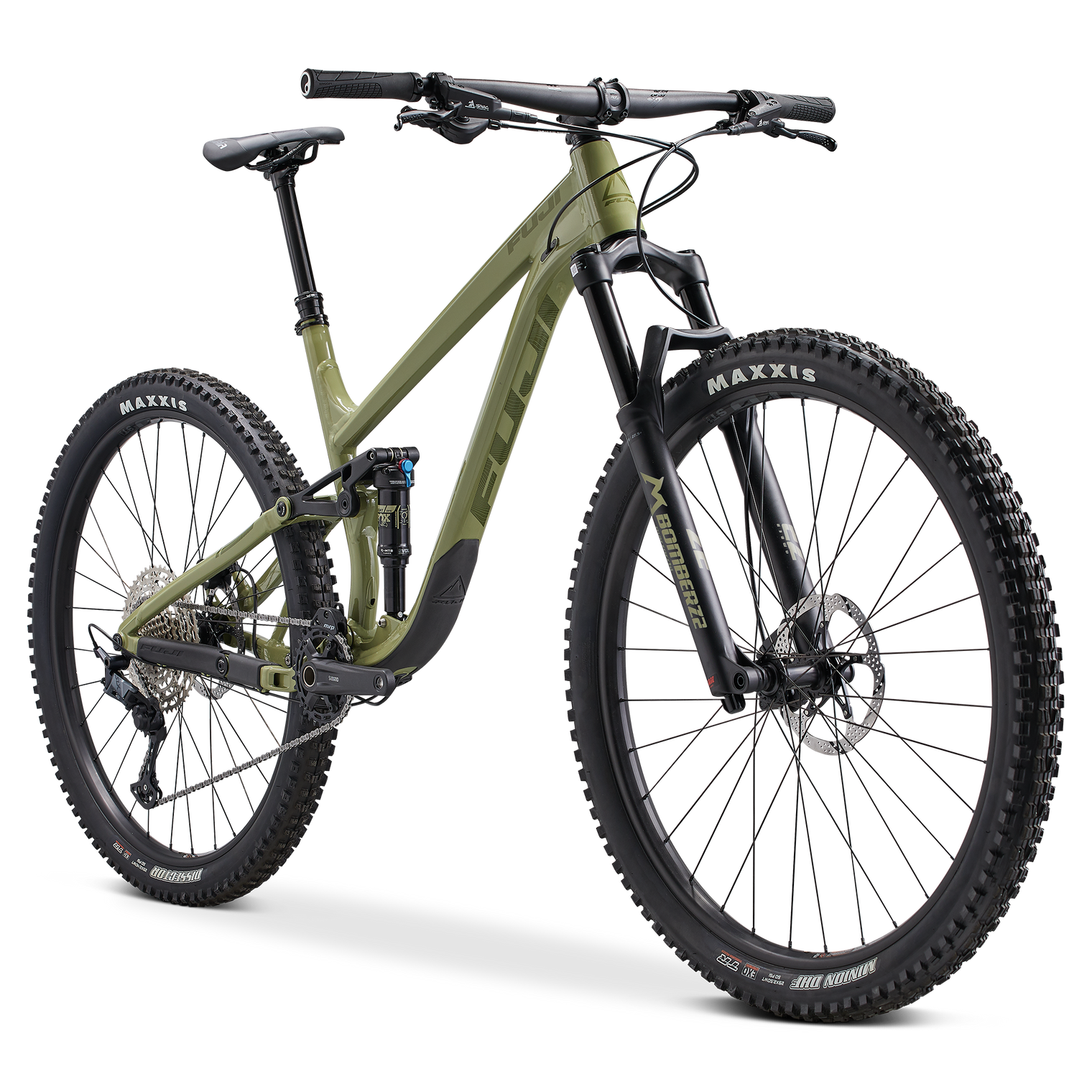

Rakan 29 1.3

$2,999.99 USD
Size Guide
Size
Color: Khaki Green
Description

The Rakan might be the most efficient pedaling trail bike on the market, with 120mm of MLink® Suspension Design technology, modern geometry and 29-inch wheels make it the obvious choice if you're looking for a do-it-all mountain bike.

Shipping and Returns

SHIPPING

All non-bike items and a limited number of bike models have the option to ship to home. All other bikes ordered online will be delivered to your chosen local authorized Fuji dealer.

SHIP TO HOME RETURNS

Item(s) in new, unassembled, unused condition and with all original packaging, hangtags, and parts will be eligible for a refund when returned within 30 days of purchase. Return shipping fees apply.

*More Details

SHIP TO STORE RETURNS

Bicycles can be returned at time of pick-up only. After leaving the store with your assembled bicycle the sale is final. It’s up to the seller you purchased from to initiate the return. Restocking fee may apply.

*More Details

Learn More

You may also like

Rakan 29 1.1

$3,999.99 USD

Rakan 29 1.7

$1,999.99 USD
View all
Technical Specifications

  • Sizes

    S, M, L, XL

    Color(s)

    Khaki Green

    Frame

    Fuji A6-SL super-butted alloy front and rear triangle, Enduro Max sealed cartridge bearings, MLink patented suspension system, Boost 148x12mm, UDH, 120mm

    Fork

    Marzocchi Bomber Z2 RAIL 29, 2-position, tapered alloy steerer, Boost 110x15mm, 44mm offset, 140mm

    Rear Shock

    Fox Float EVOL Performance

    Crankset

    Shimano Deore, 32T

    Bottom Bracket

    Shimano, threaded

    Rear Derailleur

    Shimano SLX, shadow plus

    Shifters

    Shimano Deore, 1 x 12-speed

    Cassette

    Shimano Deore, 10-51T

    Chain

    Shimano Deore

  • Wheelset

    WTB ST i30 TCS 2.0 32H, Shimano MT400 front hub, Shimano MT410 rear hub, DT Swiss Industry stainless spokes

    Tires

    Maxxis Minion DHF, 29" x 2.50" WT, 60tpi, EXO, Tubeless Ready, folding, Maxxis Dissector, 29" x 2.40" WT, 60tpi, EXO, Tubeless Ready, folding

    Brakeset

    TRP Slate EVO, 180mm rotors

    Brake Levers

    TRP Slate EVO

    Headset

    FSA 1 1/8" - 1.5", sealed cartridge bearings

    Handlebar

    Race Face Ride Riser Bar, alloy, 10mm rise, 760mm

    Stem

    Race Face Ride, alloy, +6° rise

    Grips

    Ergon GA20, Lock on

    Saddle

    Selle Italia X3 Boost

    Seat post

    KS Rage-i dropper, 31.6mm, 15" - 125mm travel, 17, 19, 21" - 150mm travel, Westy Lever

    Accessories

    MRP 1X Chainguide

    Weight

    TBD

*Specifications are subject to change without notice
Geometry
SizeSMLXL
Bike Size15"17"19"21"
ASeat Tube, Center To Top380420458495
CTop Tube, Effective590618646668.5
DHead Tube Length100110120130
ESeat Tube Angle 77°76.5°76°76°
GHead Tube Angle65°65°65°65°
HChainstay Length431431431431
IWheelbase1194.912191243.31267.5
JBottom Bracket Drop32323232
KFork Offset 44444444
MStack607.9616.9626635
NReach450470490510
OStandover748.3762.4762.4783
Stem40404040
Handlebar Width760760760760
Crank170170170170
Wheel Size29"29"29"29"
Seat Post Diameter31.631.631.631.6
