E-Nevada 27.5 2.1

$999.97 USD$1,499.99
Size Guide
Size
Color: Satin Black

This product is unavailable

Description

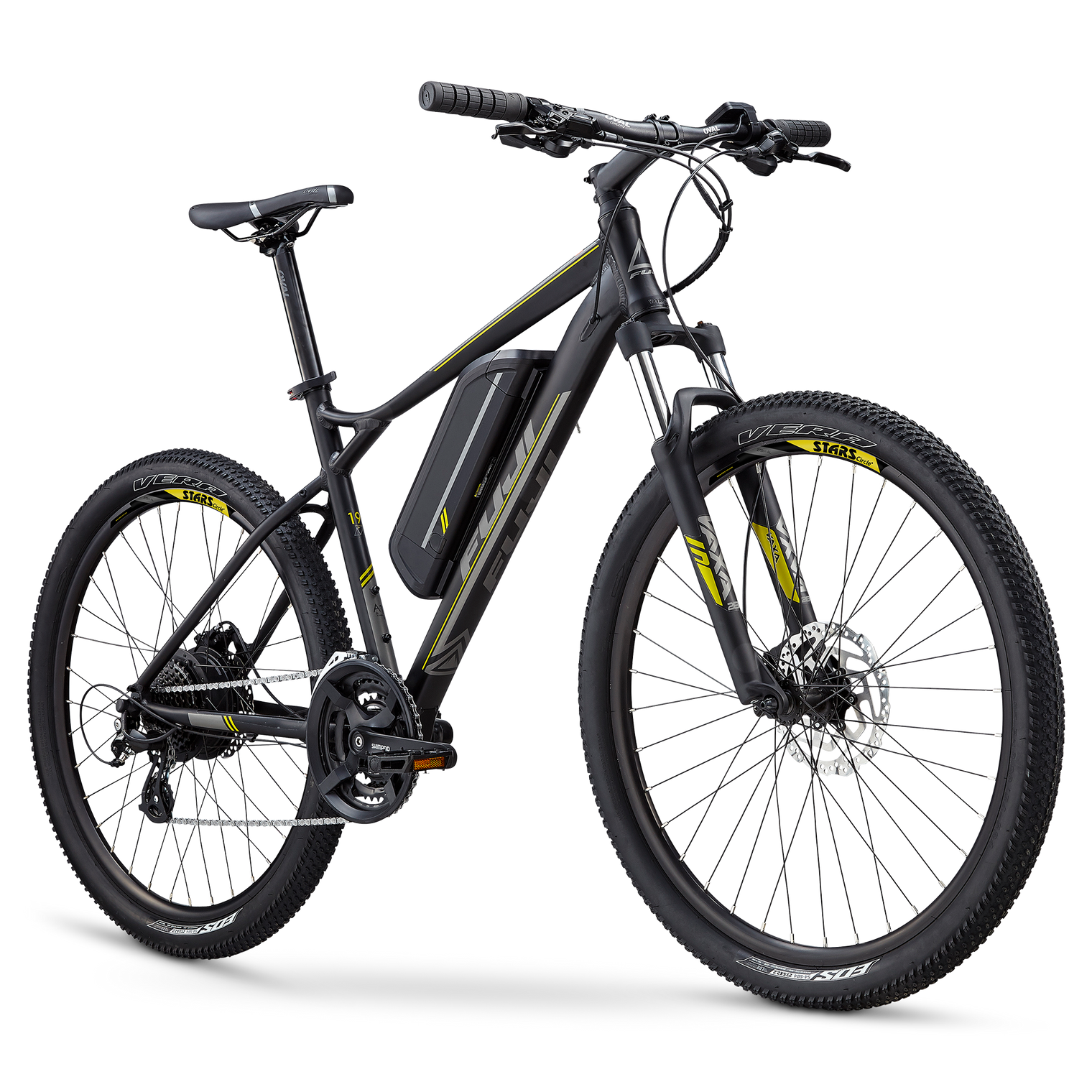

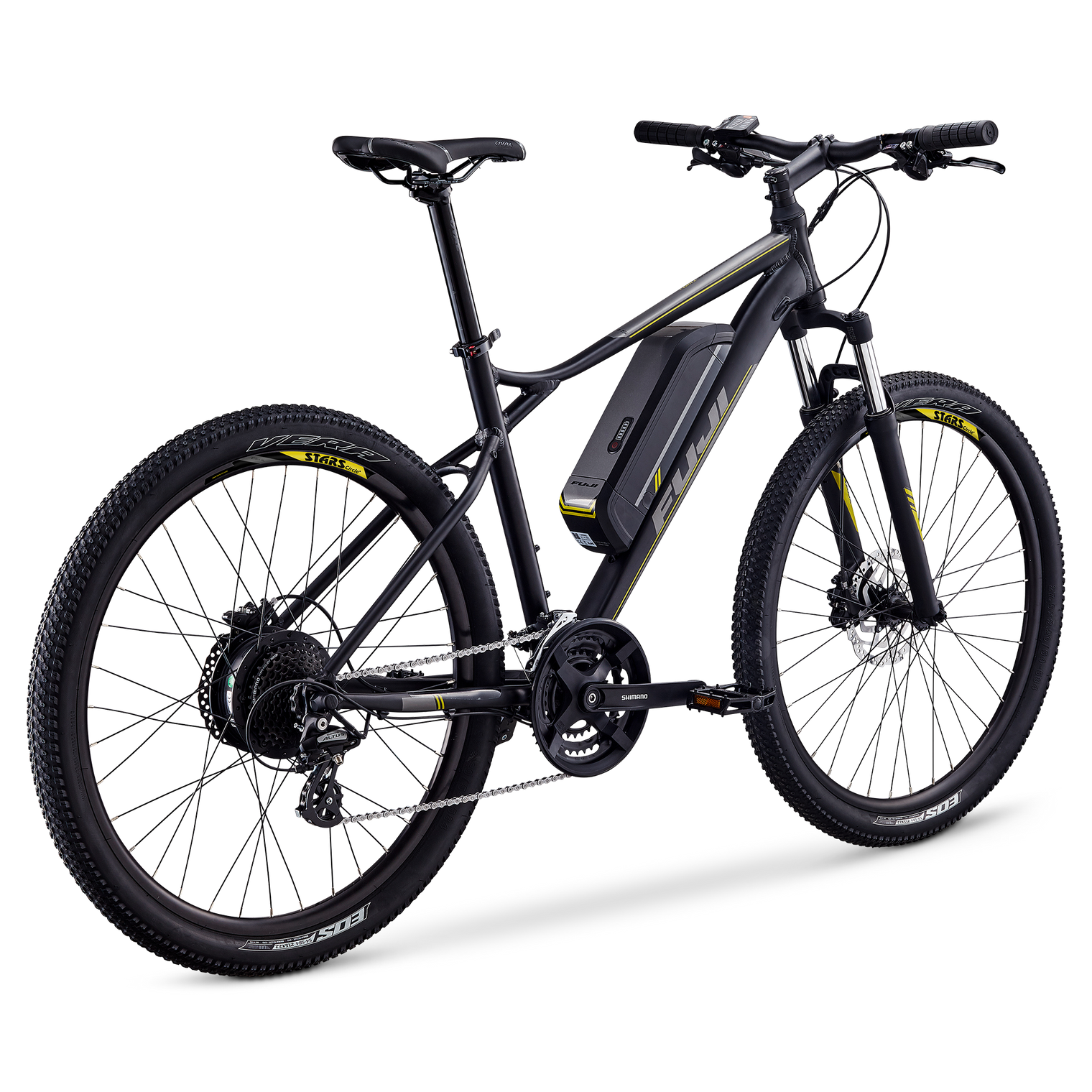

The Nevada is a staple in the Fuji mountain bike lineup, and now it comes with the power of a pedal-assist motor to open up new off-road adventures!

Shipping and Returns

SHIPPING

All non-bike items and a limited number of bike models have the option to ship to home. All other bikes ordered online will be delivered to your chosen local authorized Fuji dealer.

SHIP TO HOME RETURNS

Item(s) in new, unassembled, unused condition and with all original packaging, hangtags, and parts will be eligible for a refund when returned within 30 days of purchase. Return shipping fees apply.

*More Details

SHIP TO STORE RETURNS

Bicycles can be returned at time of pick-up only. After leaving the store with your assembled bicycle the sale is final. It’s up to the seller you purchased from to initiate the return. Restocking fee may apply.

*More Details

Technical Specifications
  • Sizes

    S (15"), M (17"), L (19"), XL (21")

    Color(s)

    Satin Black / Charcoal

    Frame

    Fuji A1-SL Alloy front and rear triangle w/ mounting for down tube battery, 1 1/8" head tube, post disc mount, replaceable hanger

    Fork

    HL VAXA 28S 525 AMS 27.5, travel 100mm

    Crankset

    Shimano TY301, 48/38/28T, w/ chainring guard

    Bottom Bracket

    Bafang cadence sensor bottom bracket

    Pedals

    Nylon platform, chromoly axle

    Front Derailleur

    Shimano Tourney TY710

    Rear Derailleur

    Shimano Altus M310

    Shifters

    Shimano Altus M310, Rapid Fire

    Cassette

    Shimano Altus HG31, 11-32T, 8-speed

    Chain

    KMC X8 w/ Missing Link, 8-speed

    Wheelset

    Shimano TX505 CL disc, 36H, front / Bafang motor hub, 6 bolt disc, 36H, rear, stainless steel spokes, aluminum double wall rims

  • Tires

    Vera Eos, 27.5" x 2.2", 30tpi

    Brakeset

    Shimano MT200 hydraulic disc, rotors: 180mm front, 160mm rear

    Brake Levers

    Shimano MT200 hydraulic disc 3 finger levers

    Headset

    1 1/8", Zero Stack, caged bearings

    Handlebar

    Oval Concepts riser bar, 6061 alloy, 15mm rise, 5 degree sweep, 31.8mm clamp

    Stem

    Fuji, forged aluminum, +/-6 degree

    Grips

    Oval Concepts 234 Trail, single density Kraton

    Saddle

    Oval Concepts 300P, steel rail

    Seatpost

    Oval Concepts, 6061 alloy micro adjust, 30.9mm diameter

    Drive Unit

    Bafang H400 rear hub motor, 250W rated power, 20mph or 25kph maximum assist

    Battery

    Fuji Power Pack 417Wh w/ 2A charger

    Display

    Bafang 5 mode LED display w/ walk assist

    Accessories

    Alloy kickstand, bell

*Specifications are subject to change without notice
Geometry
Size SMLXL
Bike size15"17"19"21"
ASeat Tube C to T386430483532
BSeat Tube Effective611593620604
CTop Tube Effective570590620640
DHead Tube Length120115125135
ESeat Tube Angle / Actual73737373
GHeadtube Angle70707070
HChainstay Length450450450450
IWheelbase1083110211321153
JBB Drop45454545
KFork Offset42424242
LTrail
MStack603590618616
NReach382405432449
OStandover659678729768
Stem8090100110
Handlebar Width640640660660
Crank 170170175175
Wheel Size27.5"27.5"27.5"27.5"
Seat Post Diameter30.930.930.930.9
